Electrical Components
Electrical Components
At Intersales Enterprise, we supply a broad spectrum of high-quality electrical components engineered to support precision, safety, and performance in industrial, commercial, and automation environments. Our offerings include advanced testing instruments, electromechanical sensors, power control devices, and temperature measuring solutions tailored to the evolving demands of modern electrical systems.
Our product lineup features trusted instruments such as the Analog Insulation Resistance Tester (Megohmmeter), Digital Clamp Meters, RTD and Thermocouple Temperature Sensors, and the versatile Digital Multimeter HTC DM-85T. We also offer durable HRC fuse links, vacuum pumps, and control transformers essential for various industrial setups. Whether you're monitoring vibration, temperature, or electrical continuity, Intersales Enterprise delivers reliable electrical solutions built to ensure operational stability and safety.
| Product Name | Type | Key Specifications | Applications |
|---|---|---|---|
| Analog Insulation Resistance Tester (Megohmmeter) | Testing Instrument | Range: 0–1000 MΩ, Voltage: 500V/1000V, Analog Display | Insulation testing of motors, cables, and switchgear |
| Digital Clamp Meter | Measuring Instrument | AC/DC Current: up to 1000A, Auto-ranging, LCD Display | Current measurement without circuit interruption |
| Digital Vibration Meter | Condition Monitoring | Range: 0.1–199.9 mm/s, Sensor Type: Piezoelectric | Vibration analysis for motors and bearings |
| Double Stage Oil Sealed Rotary Vane Vacuum Pump | Vacuum Pump | Flow Rate: up to 50 L/min, Ultimate Pressure: <10 Pa | Evacuation, packaging, and lab systems |
| High Rupture Capacity (HRC) Fuse | Protection Device | Voltage: 415V/690V, Current: 2A–800A | Overcurrent protection in high-power circuits |
| HRC Fuse Link | Protection Component | Breaking Capacity: up to 80 kA, Type: Knife blade / Bolted | Industrial control panels and switchboards |
| Hydraulic Vane Pump | Hydraulic Component | Flow Rate: 5–100 L/min, Pressure: up to 210 bar | Hydraulic power units and machines |
| Manual Lever-Operated Hydraulic Directional Valve | Hydraulic Valve | Type: 4/2 or 4/3, Pressure: 315 bar | Manual control of hydraulic flow |
| Pilot Operated Relief Valve | Hydraulic Valve | Pressure Setting: up to 350 bar, Thread: BSP/NPT | Pressure regulation in hydraulic circuits |
| RTD Sensor PT100 | Temperature Sensor | Accuracy: Class A/B, 3-Wire Configuration | Temperature sensing in process control |
| Control Transformer | Power Transformer | Input: 415V, Output: 110V/230V, Rating: 50VA to 5kVA | Powering control circuits in panels |
| Split Type Vibrometer | Vibration Analyzer | Remote Sensor, Digital Display, Peak/RMS Reading | Machinery health monitoring |
| Engine Coolant Temperature Sensor (ECTS) | Automotive Sensor | NTC Thermistor, Threaded Mount, Range: -40°C to 150°C | Engine temperature regulation |
| Type K Thermocouple | Temperature Sensor | Range: -200°C to 1250°C, Connector: Miniature | High-temp industrial heating and monitoring |
| Digital Multimeter HTC DM 85 T | Measuring Instrument | True RMS, AC/DC Voltage/Current, Frequency, Continuity | Electrical troubleshooting and measurement |

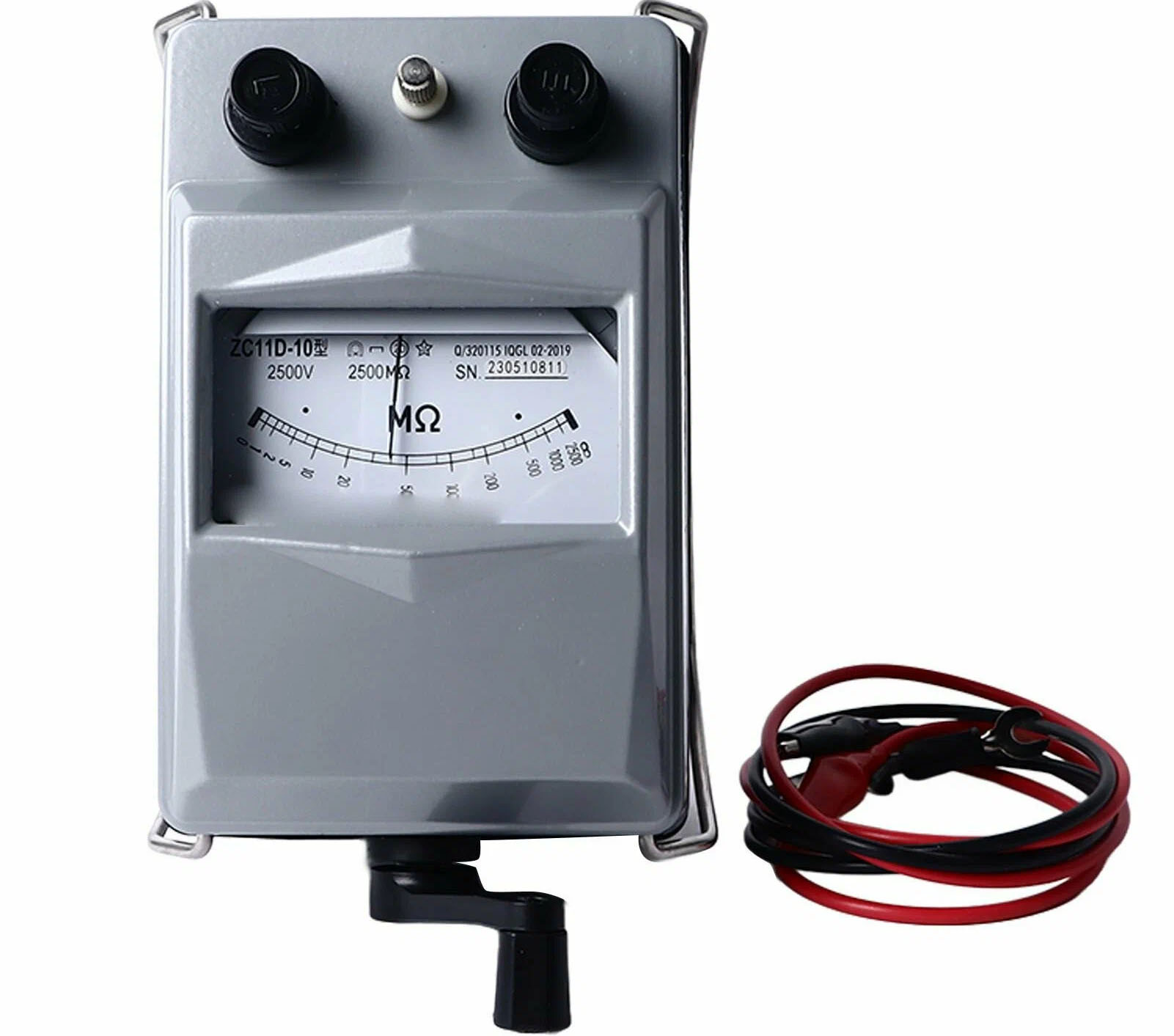

Analog Insulation Resistance Tester (Megohmmeter)
The Analog Insulation Resistance Tester, also known as a Megohmmeter, is a reliable device used to measure the insulation resistance of electrical installations and equipment. Widely used in industrial, electrical, and maintenance applications, this tester helps ensure safe operation by detecting insulation deterioration and potential leakage paths. Its analog display provides a clear and immediate visual reading, making it ideal for field testing.
Key Features:
- Measures insulation resistance up to 1000 MΩ
- Selectable test voltages: 250V, 500V, 1000V
- Shock-resistant analog meter for reliable readings
- Battery-operated for portable use
- Durable, rugged casing for industrial environments
- Ideal for testing motors, transformers, cables, and switchgear
Specifications:
| Model | Measurement Range | Test Voltage | Display | Power Source |
|---|---|---|---|---|
| IR-1000A | 0–1000 MΩ | 250V / 500V / 1000V | Analog Scale | 1.5V x 6 AA Batteries |

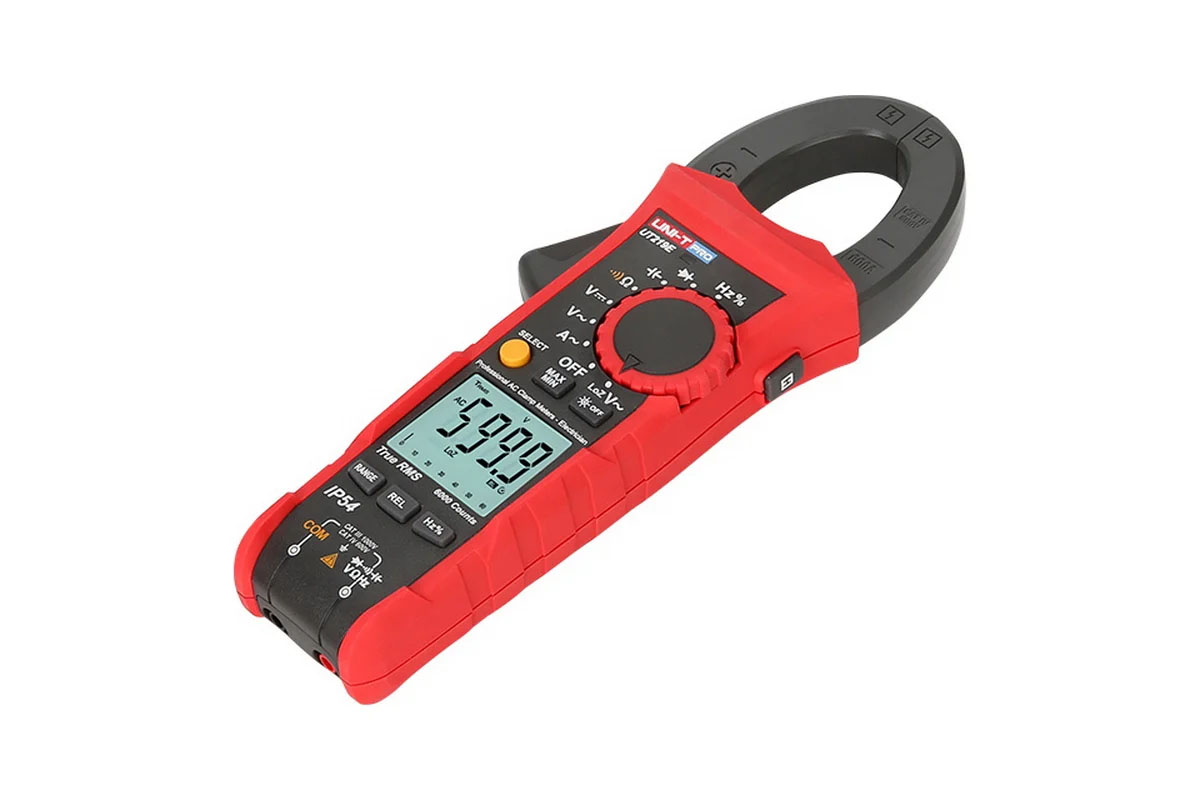

Digital Clamp Meter
The Digital Clamp Meter is a versatile electrical testing instrument used for non-contact current measurements in live circuits. Designed for both professional electricians and technicians, it combines the functions of a digital multimeter with the convenience of a clamp mechanism. This device is perfect for measuring AC/DC current, voltage, resistance, and continuity without disconnecting the circuit.
Key Features:
- Measures AC/DC current up to 1000A
- True RMS readings for accurate results
- Large backlit LCD for clear visibility
- Data hold, max/min reading, and continuity buzzer
- Built-in non-contact voltage detection (NCV)
- Overload protection and auto power-off function
Specifications:
| Model | Current Range | Voltage Range | Display | Features |
|---|---|---|---|---|
| HTC CM-2100 | 0 – 1000A (AC/DC) | 0 – 600V (AC/DC) | Backlit LCD (4000 count) | NCV, Data Hold, Max/Min, Auto Power Off |
Digital Vibration Meter
The Digital Vibration Meter is an advanced diagnostic tool used to measure vibration levels in mechanical systems, helping in predictive maintenance and early fault detection. Designed for rotating machinery, this handheld meter provides accurate measurements of velocity, acceleration, and displacement to monitor machine health and performance.
Key Features:
- Measures acceleration, velocity, and displacement
- Highly sensitive piezoelectric sensor for accurate readings
- Backlit LCD for easy viewing in low light
- Compact and lightweight handheld design
- Battery operated for portable use
- Data hold and auto power-off function
Specifications:
| Parameter | Range | Accuracy | Sensor Type | Power Supply |
|---|---|---|---|---|
| Velocity | 0.1 – 199.9 mm/s (RMS) | ±5% | Piezoelectric Accelerometer | 9V Battery |
| Acceleration | 0.1 – 199.9 m/s² (Peak) | ±5% | Piezoelectric Accelerometer | 9V Battery |
| Displacement | 0.001 – 1.999 mm (P-P) | ±5% | Piezoelectric Accelerometer | 9V Battery |

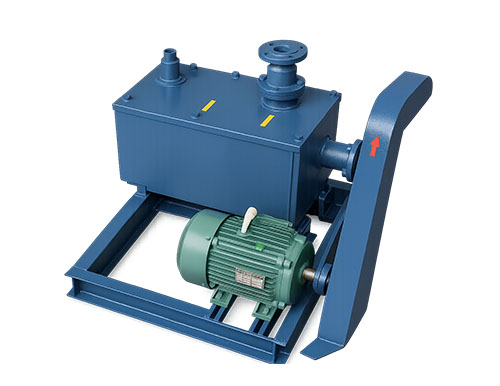

Double Stage Oil Sealed Rotary Vane Vacuum Pump
The Double Stage Oil Sealed Rotary Vane Vacuum Pump is designed for high-performance vacuum generation in industrial and laboratory settings. It delivers consistent and efficient vacuum levels, making it ideal for applications like air conditioning servicing, degassing, and vacuum drying. The dual-stage mechanism enhances vacuum depth and reliability.
Key Features:
- Two-stage design for deeper vacuum performance
- Oil-sealed system ensures high efficiency and durability
- Low noise and vibration operation
- Thermal protection for long service life
- Aluminum housing for better heat dissipation
- Compact and portable with anti-slip handle
Specifications:
| Pumping Speed | Ultimate Vacuum | Motor Power | Oil Capacity | Weight |
|---|---|---|---|---|
| 50 L/min (1.8 CFM) | 5 × 10⁻² mbar | 1/4 HP | 250 ml | 7.5 Kg |

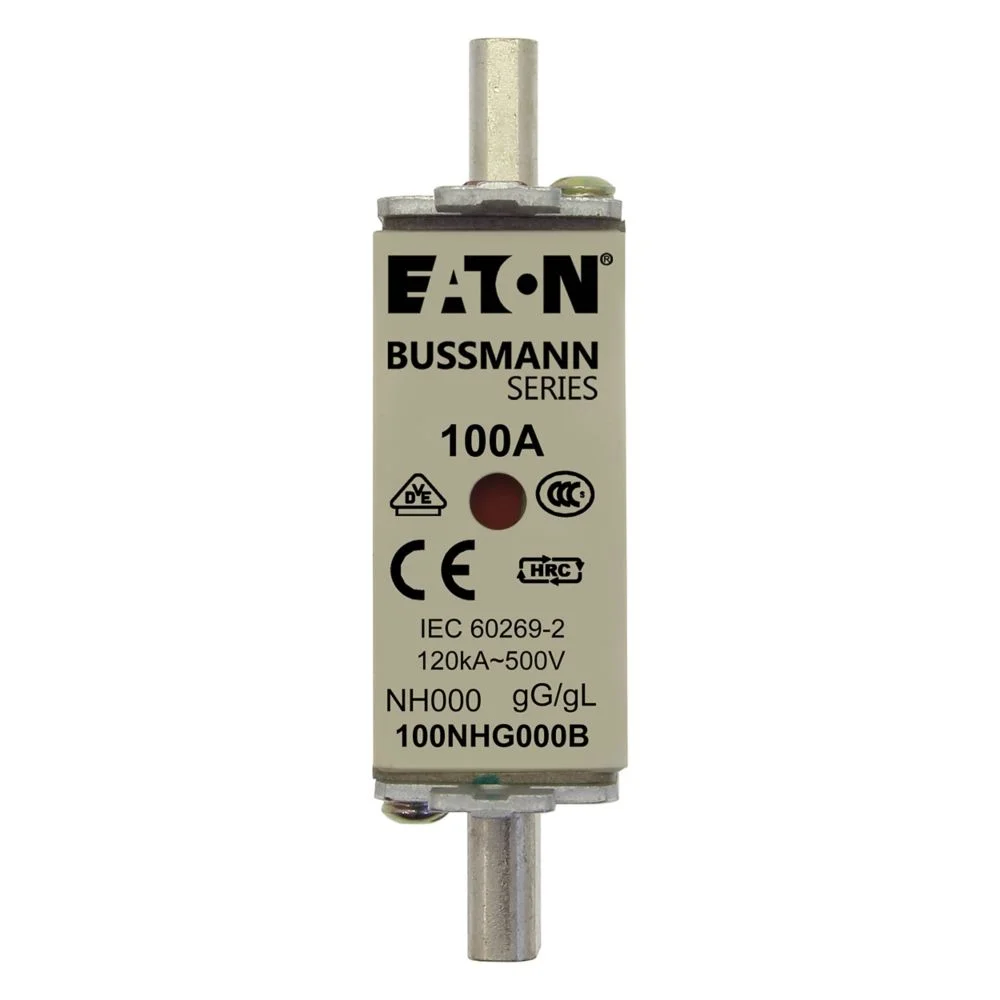

High Rupture Capacity (HRC) Fuse
The High Rupture Capacity (HRC) Fuse is a critical safety component used for protecting electrical circuits against overcurrents and short circuits. Designed to withstand high fault levels without rupturing violently, HRC fuses are widely used in industrial panels, transformers, and switchgear systems where reliable circuit protection is essential.
Key Features:
- Fast and reliable circuit protection under fault conditions
- High breaking capacity to handle large fault currents
- Ceramic body with arc-quenching filler for enhanced safety
- Low power loss and consistent performance
- Available in DIN, BS, and IS standards
- Suitable for AC and DC systems
Specifications:
| Rated Current | Rated Voltage | Breaking Capacity | Fuse Type | Standards |
|---|---|---|---|---|
| 2 A to 800 A | 500V / 690V / 1000V | Up to 120 kA | DIN / BS / NH / Blade Type | IEC 60269, IS 13703 |

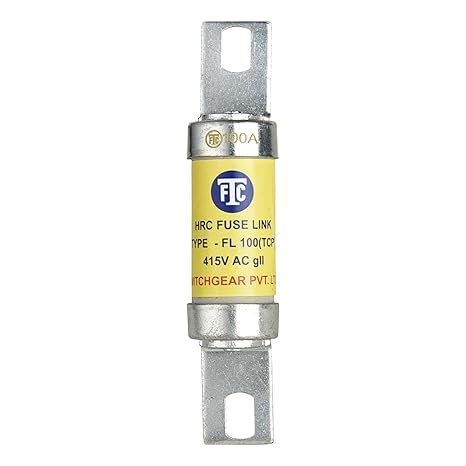

HRC Fuse Link
The HRC Fuse Link is a highly dependable fuse element used within high rupture capacity (HRC) fuse systems. It is engineered to ensure quick disconnection of circuits during overcurrent or short-circuit faults, safeguarding equipment and personnel. These fuse links are commonly used in control panels, switchboards, motor protection systems, and distribution units.
Key Features:
- Precision-engineered to provide consistent and accurate operation
- High interrupting capacity ensures reliable protection
- Silver-plated contacts for minimal resistance and enhanced conductivity
- Compact, easy-to-install design
- Available in gG, aM, and gM utilization categories
- Compatible with various HRC fuse holders and bases
Specifications:
| Current Rating | Voltage Rating | Breaking Capacity | Utilization Category | Standard Compliance |
|---|---|---|---|---|
| 2 A to 630 A | 500V / 690V AC | Up to 120 kA | gG / aM / gM | IEC 60269 / IS 13703 |
Hydraulic Vane Pump
The Hydraulic Vane Pump is a high-performance fluid power solution widely used in industrial hydraulic systems for smooth and efficient operation. Known for its quiet performance and consistent flow rates, this pump is ideal for machine tools, presses, injection molding machines, and mobile equipment. Its compact size and reliability make it an essential component in hydraulic applications requiring medium pressure ranges.
Key Features:
- Compact design for space-saving installation
- Low noise operation and smooth flow characteristics
- High volumetric efficiency and stable performance
- Multiple displacement options available
- Sturdy construction for long service life
- Ideal for medium-pressure hydraulic applications
Specifications:
| Displacement | Operating Pressure | Speed Range | Flow Rate | Mounting Type |
|---|---|---|---|---|
| 5 to 300 cm³/rev | Up to 210 bar | 600 – 1800 RPM | Up to 200 L/min | Flange / Foot Mounted |

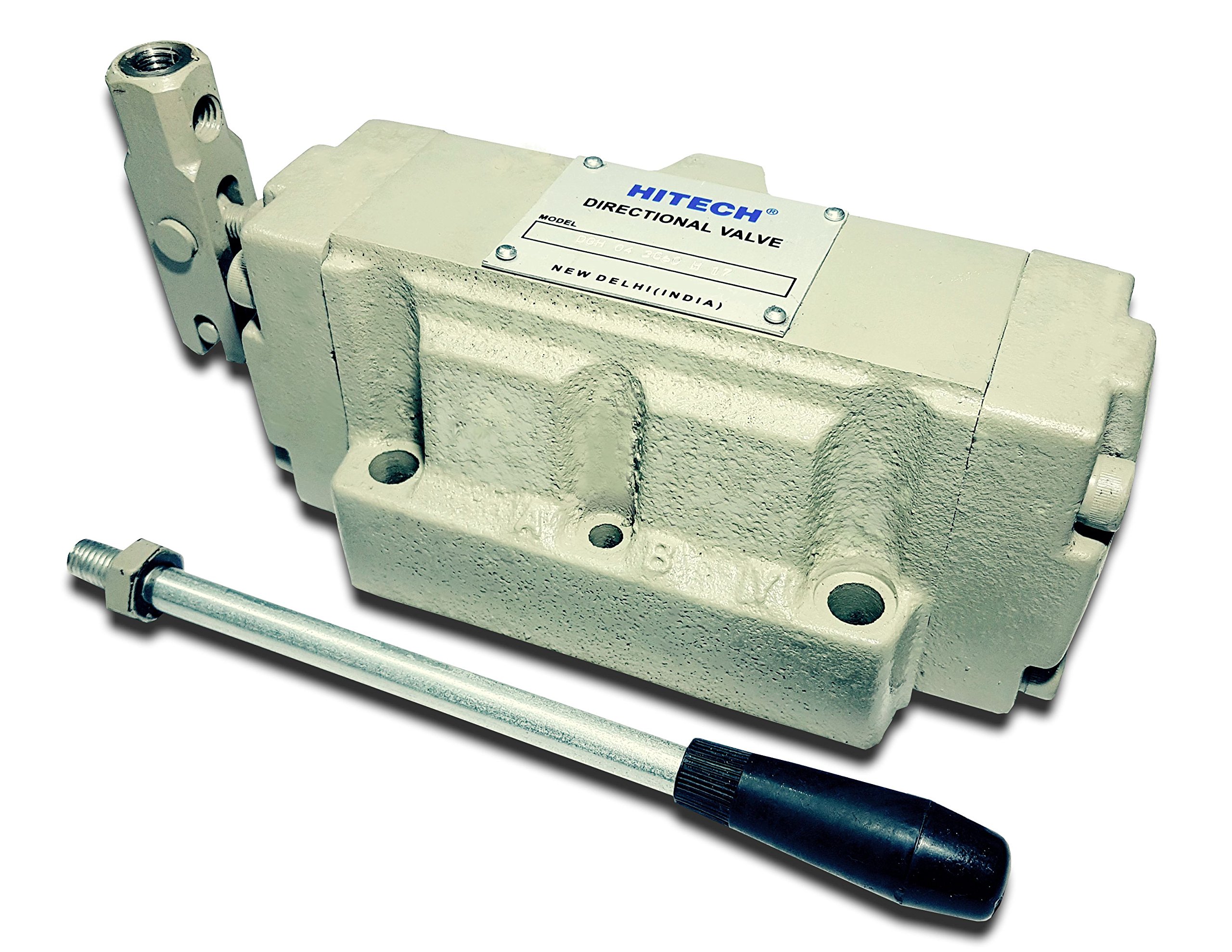

Manual Lever-Operated Hydraulic Directional Valve
The Manual Lever-Operated Hydraulic Directional Valve is designed to control the flow direction of hydraulic fluid in industrial hydraulic systems. Its manual lever operation provides precise control and quick response, making it suitable for various applications including machine tools, agricultural machinery, and mobile hydraulics. Built with robust materials, this valve ensures durability and reliable performance even under demanding conditions.
Key Features:
- Manual lever for easy and precise flow direction control
- Durable construction for extended service life
- Compact and ergonomic design for user convenience
- Suitable for a wide range of hydraulic applications
- High pressure rating ensuring system safety
- Low leakage and smooth operation
Specifications:
| Type | Pressure Rating | Flow Capacity | Operation | Port Size |
|---|---|---|---|---|
| 2/3/4 Way Directional Valve | Up to 250 bar | Up to 80 L/min | Manual Lever Operated | 1/4" to 1" |

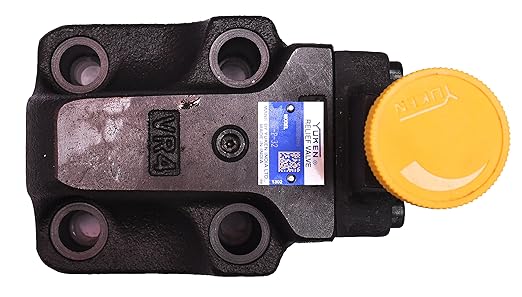

Pilot-Operated Relief Valve
The Pilot-Operated Relief Valve is engineered to provide precise pressure control and system protection in hydraulic circuits. Utilizing a pilot mechanism, this valve offers stable and accurate pressure relief, minimizing pressure fluctuations and improving system efficiency. Ideal for high-pressure applications, it safeguards equipment by preventing overpressure conditions.
Key Features:
- Accurate pressure control with pilot-operated design
- Stable operation with minimal pressure fluctuation
- High-pressure rating for heavy-duty applications
- Adjustable relief setting for system customization
- Compact and robust construction for durability
- Suitable for various hydraulic and industrial systems
Specifications:
| Type | Pressure Range | Flow Capacity | Adjustment Range | Port Size |
|---|---|---|---|---|
| Pilot-Operated Relief Valve | 10 to 350 bar | Up to 100 L/min | Adjustable 10-350 bar | 1/4" to 1" |

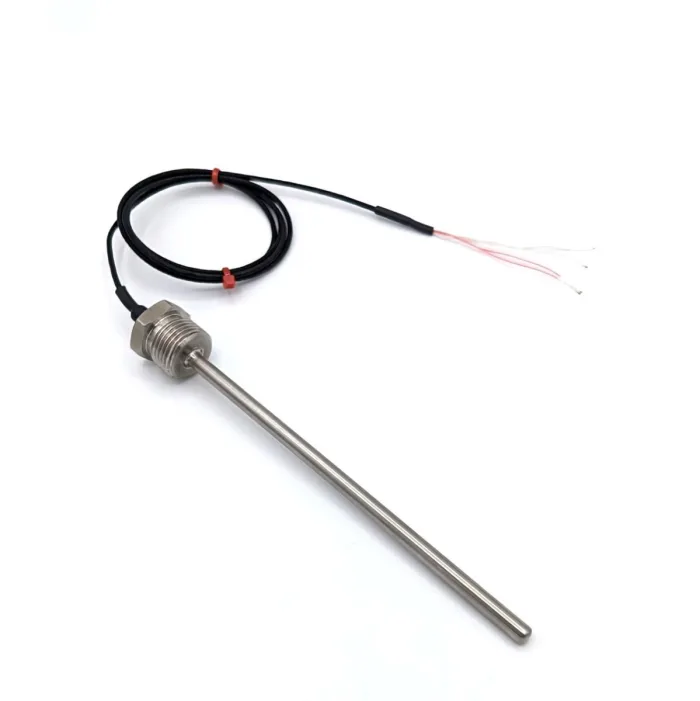

Resistance Temperature Detector (RTD) Sensor PT100
The PT100 RTD Sensor is a highly accurate temperature sensor widely used in industrial applications for precise temperature measurement. It operates on the principle that the resistance of platinum increases with temperature, making it ideal for monitoring and controlling processes where temperature stability is critical. PT100 sensors provide excellent repeatability and long-term stability.
Key Features:
- High accuracy temperature measurement
- Wide temperature range: -200°C to 850°C
- Stable and repeatable resistance output
- Robust construction suitable for harsh environments
- Compatible with most temperature transmitters and controllers
- Available in various configurations: probe, cable, and flange-mounted
Specifications:
| Sensor Type | Resistance at 0°C | Temperature Range | Accuracy | Sheath Material |
|---|---|---|---|---|
| PT100 | 100 Ω | -200°C to 850°C | Class A or B | Stainless Steel / Inconel |

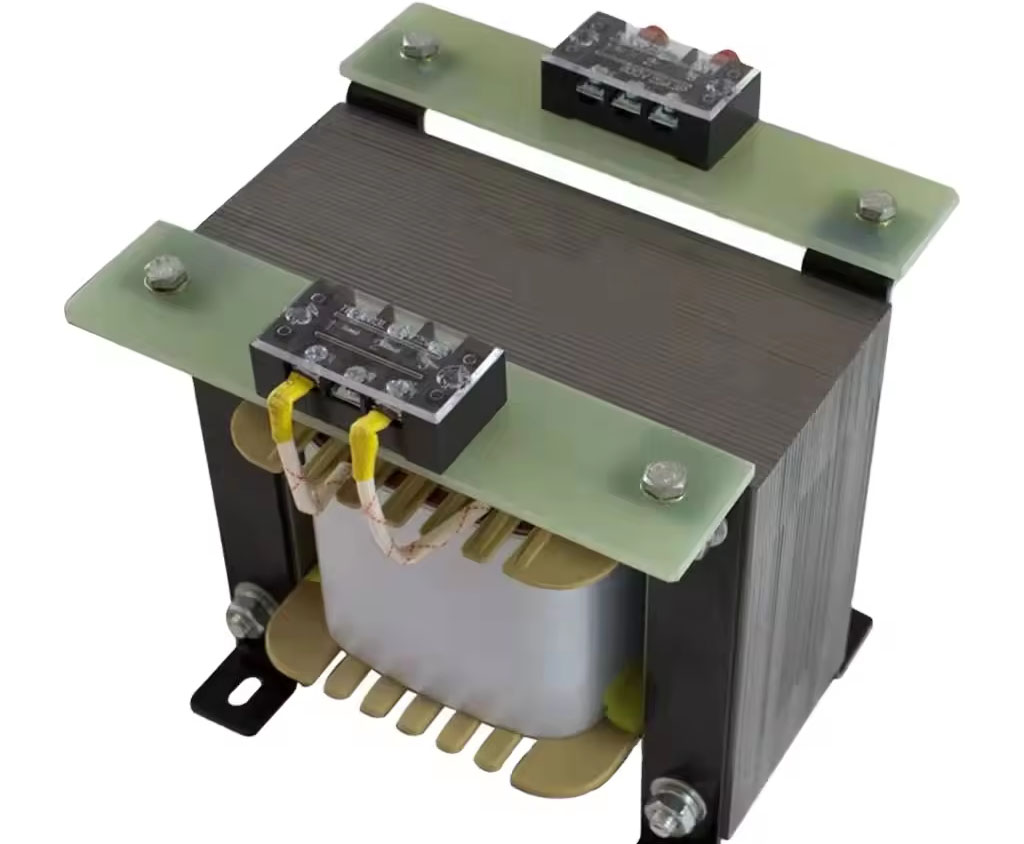

Control Transformer
The Control Transformer is designed to provide stable and reliable voltage for control circuits and instrumentation in industrial electrical systems. It ensures consistent voltage supply to sensitive control devices, protecting them from voltage fluctuations and enhancing operational safety. Suitable for a variety of industrial applications, these transformers are built to withstand harsh environments and deliver long-lasting performance.
Key Features:
- Robust construction for industrial environments
- Excellent voltage regulation and minimal voltage drop
- High efficiency with low losses
- Wide range of power ratings and voltage options
- Thermal protection and insulation class to ensure safety
- Compact design suitable for control panels
Specifications:
| Power Rating | Primary Voltage | Secondary Voltage | Frequency | Insulation Class |
|---|---|---|---|---|
| 50 VA to 5000 VA | 230V / 400V / 415V | 24V / 48V / 110V / 220V | 50 Hz / 60 Hz | Class B / Class F |

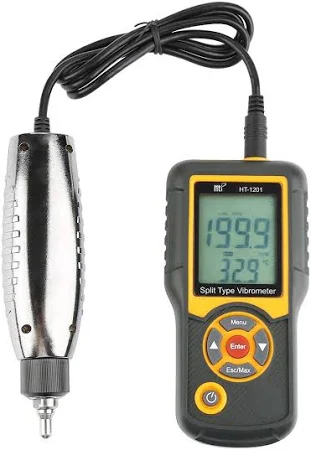

Split Type Vibrometer
The Split Type Vibrometer is a precision instrument designed to monitor and measure vibration levels in rotating machinery and industrial equipment. Its split design allows easy installation around shafts or motors without disassembly, making it ideal for continuous condition monitoring and predictive maintenance. This vibrometer helps in early detection of mechanical faults, reducing downtime and maintenance costs.
Key Features:
- Split construction for easy installation and removal
- High sensitivity and accuracy for vibration measurement
- Suitable for shafts and rotating machinery of various sizes
- Robust and durable design for harsh industrial environments
- Real-time vibration monitoring with analog or digital output options
- Helps in predictive maintenance and fault diagnosis
Specifications:
| Measurement Range | Frequency Range | Sensitivity | Output Type | Operating Temperature |
|---|---|---|---|---|
| 0 to 100 mm/s | 10 Hz to 1 kHz | 10 mV/mm/s | Analog / Digital | -20°C to 80°C |

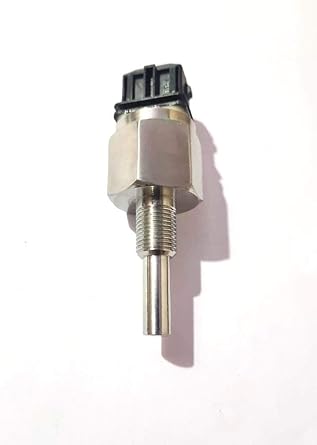

Engine Coolant Temperature Sensor (ECTS)
The Engine Coolant Temperature Sensor (ECTS) plays a crucial role in monitoring the temperature of the engine coolant. It provides real-time temperature data to the engine control unit (ECU), enabling optimal engine performance and preventing overheating. Designed for automotive and industrial engines, this sensor ensures efficient fuel management and emission control.
Key Features:
- Accurate temperature measurement for engine coolant
- Fast response time for real-time monitoring
- Durable construction to withstand harsh engine environments
- Compatible with various engine models and types
- Helps in efficient fuel injection and emission regulation
- Easy installation and reliable electrical connections
Specifications:
| Sensor Type | Operating Temperature Range | Output Signal | Thread Size | Voltage |
|---|---|---|---|---|
| Thermistor Type | -40°C to 150°C | Resistance / Voltage | M12 x 1.5 | 5V / 12V |

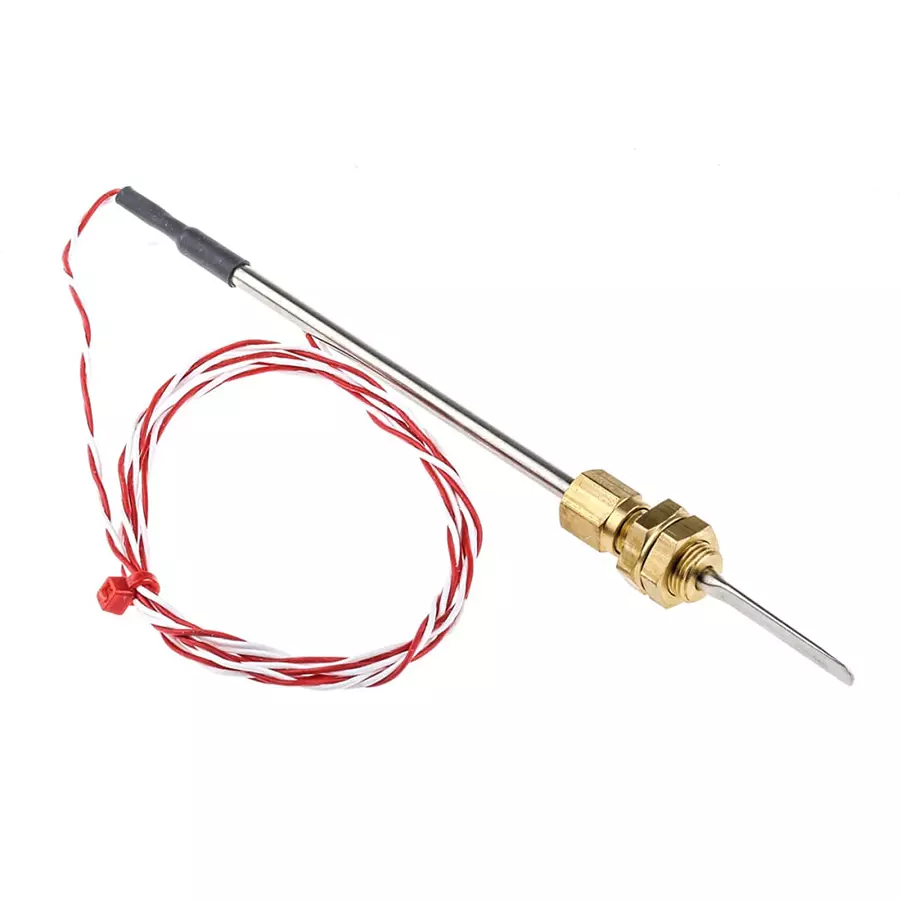

Type K Thermocouple Temperature Sensor
The Type K Thermocouple is a widely used temperature sensor ideal for measuring a broad range of temperatures in industrial, scientific, and HVAC applications. Made from chromel and alumel metals, this sensor offers excellent accuracy, stability, and fast response over a wide temperature range, making it suitable for harsh environments.
Key Features:
- Wide temperature measurement range (-200°C to 1260°C)
- High accuracy and fast response time
- Durable construction suitable for harsh industrial conditions
- Compatible with standard thermocouple connectors and instrumentation
- Reliable and repeatable temperature readings
- Ideal for furnace, kiln, and engine temperature monitoring
Specifications:
| Type | Measurement Range | Accuracy | Material | Output Signal |
|---|---|---|---|---|
| K (Chromel-Alumel) | -200°C to 1260°C | ±1.5°C or ±0.4% | Chromel and Alumel Wires | Millivolt (mV) Thermoelectric Voltage |

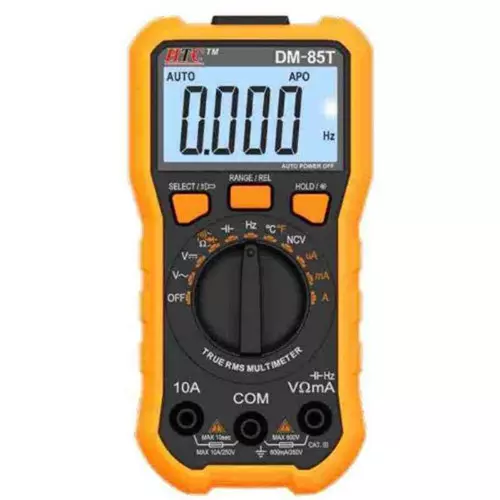

Digital Multimeter HTC DM 85 T
The HTC DM 85 T Digital Multimeter is a versatile and reliable instrument designed for precise electrical measurements. It is widely used by electricians, engineers, and technicians for troubleshooting and testing electrical circuits, components, and devices. This multimeter combines accuracy with user-friendly features, making it ideal for both field and laboratory use.
Key Features:
- Large, clear LCD display with backlight for easy reading
- Measures AC/DC voltage, current, resistance, capacitance, and frequency
- True RMS measurement for accurate AC readings
- Data hold, auto range, and auto power-off functions
- Durable, ergonomic design with protective rubber holster
- Continuity and diode test capability
- Complies with safety standards for electrical testing equipment
Specifications:
| Measurement Functions | Display | Accuracy | Power Supply | Safety Rating |
|---|---|---|---|---|
| AC/DC Voltage, Current, Resistance, Capacitance, Frequency, Continuity, Diode Test | 3.5 digit LCD with backlight | ±(0.5% + 2 digits) | 9V Battery | CAT III 600V |
